Home Golf Utility & Transportation Vehicles DX1
CITY 3
Back to products
CJV-2350

DX1



  • Motor AC electric motor (induction)
  • Charger 48V/25A
  • Battery Lithium-ion battery | 72V | 25.6Ah │50.2Ah (double battery pack)
  • Cell rated capacity 3200mAh
  • Max speed 40 km/h (24.9 mph) | 60 km/h (37.3 mph)
  • Range  50 km (31 miles)│100 km (62 miles)
  • Charging time ~5hrs
Compare
Add to wishlist
Category: Golf Utility & Transportation Vehicles
Share:
  • Description
  • Additional information
Description

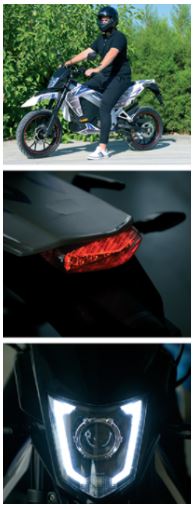

DX1



Zero CO2 emission all electric free maintenance motorcycle.

Two removable lightweight Li-ion batteries allowing for 100km range for approximately 0,90 €.

The mid-drive electric motor, ensures better weight distribution and lower centre of gravity,lending to handling, stability and driving experience

MAIN FEATURES

• LCD display
• LED headlamp with light intensity up to 25000cd
• Keyless & remote start
• Two usb sockets

0 g/kg

CO2 emissions

Zero Road Tax



Lithium Ion Batteries

Maintenance FREE

Up to 4000 kW

Max continuous power

100 – 120 km

Range

DIMENSIONS

A Wheelbase 1470 mm (57.9 in)
B Length 2080 mm (81.3 in)
C Width 860 mm (33.9 in)
C1 Width including mirrors 920 mm (36.2 in)
D Height 1150 mm (45.9 in)
E Ground Clearance 285 mm (11.2 in)

MOTOR

Max continuous power 3000W | 4000W
Motor Type electric mid-drive motor
Motor speed 45 km/h (28 mph)│75 km/h (46.6 mph)
Torque 13 Nm
Slope climbing ability 15o
Rear Suspension medium hydraulic shock absorber, adjustable spring preload

WHEELS/BRAKES/SUSPENSION

Front Tyre (on/off road) 110/70-17, 54H│90/90-21
Rear Tyre (on/off road) 120/70-17, 58H│4.10-18
Front Brake Disc Ø240 hydraulically actuated with master cylinder Ø12.7, floated calliper with opposed wheel piston of 2- Ø25
Rear Brake Disc Ø210, hydraulically actuated with master cylinder Ø12.7, floated calliper with opposed wheel piston of Ø38
Front Suspension Ø37 inverted hydraulic shock absorber

POWER SYSTEM

Type Lithium ion battery
Voltage 72 V
Capacity 25.6Ah │50.2Ah (double battery pack)
Cell rated capacity 3200mAh
Range 50 km (31 miles)│100 km (62 miles)
Battery weight 11kg (24.3 lbs) (each battery)
Charging time abt. 5hrs
Charger 110-240V

FEATURES

LCD Display
LED Headlamp with light intensity up to 25000cd
Keyless & Remote Start
Two USB sockets
Powerpacks are connected with wire so there is no need for the driver to change one another manually

WEIGHT

Kerb Weight 109 kg (240.3 lbs).
Max load 170 kg (374.8 lbs)
No of Seats 2

ECONOMY

Typical Cost to Recharge based on Cyprus average household consumer price 0.90€

Additional information
Seats

2

Send Enquiry

    Related products

    Compare

    Duro Cargo L


    • Motor 48V 4kW AC Motor
    • Controller Toyota 48M-350A
    • Charger 48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle 16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 20o (loaded)
    • Range 70-90 km (43.5-55.9 mils), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance 4.3 m (14’ 1”)
    • Min turning radius 4.4 m (14’ 5”)
    Add to wishlist
    Compare

    Duro Cargo S

    • Motor 48V 4kW AC Motor
    • Controller Toyota 48M-350A
    • Charger 48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle 16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 20o (loaded)
    • Range 70-90 km (43.5-55.9 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance 4.3 m (14’ 1”)
    • Min turning radius 4.4 m (14’ 5”)
    Add to wishlist
    Compare

    Duro Truck 48

    • Motor 48V 4kW AC Motor
    • Controller Toyota 48M-350A
    • Charger 48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle 16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 15o (loaded)
    • Range 70-90 km (43.5-55.9 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance 4 m (13’ 1”)
    • Min turning radius 5.2 m (17’)
    Add to wishlist
    Compare

    Duro Cargo VBL/VBS


    • Motor 48V 4kW AC Motor
    • ControllerToyota 48M-350A
    • Charger48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle 16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 25o (loaded)
    • Range 80-90 km (49.7-55.9 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance 3.8 m (12’ 6”)
    • Min turning radius3.5 m (11’ 6”)
    Add to wishlist
    Compare

    Duro G1


    • Motor 48V 4kW AC Motor
    • Controller Toyota 48M-350A
    • Charger 48V/25A
    • Battery 170Ah Gel battery,150Ah Lithium battery, 200Ah Lithium Battery -available upon request
    • Transaxle 12.31:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 25o (loaded)
    • Range 80-100 km (49.7-62.1 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance <6m (19’ 8”)
    • Min turning radius 2.95 m (9’ 8”)
    Add to wishlist
    Compare

    Duro V4


    • Motor 48V 4kW AC Motor
    • ControllerToyota 48M-350A
    • Charger48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle 12.31:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 25o (loaded)
    • Range 80-100 km (49.7-62.1 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance <6m (19’ 8”)
    • Min turning radius2.9 m (9’ 6”)
    Add to wishlist
    Compare

    Duro Cargo FSBS


    • Motor 48V 4kW AC Motor
    • ControllerToyota 48M-350A
    • Charger48V/25A
    • Battery 170Ah Gel battery, 150Ah | 200Ah Lithium Battery - available upon request
    • Transaxle  16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 20o (loaded)
    • Range 80-90 km (49.7-55.9 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance 3.8 m (12’ 6”)
    • Min turning radius3.5 m (11’ 6”)
    Add to wishlist
    Compare

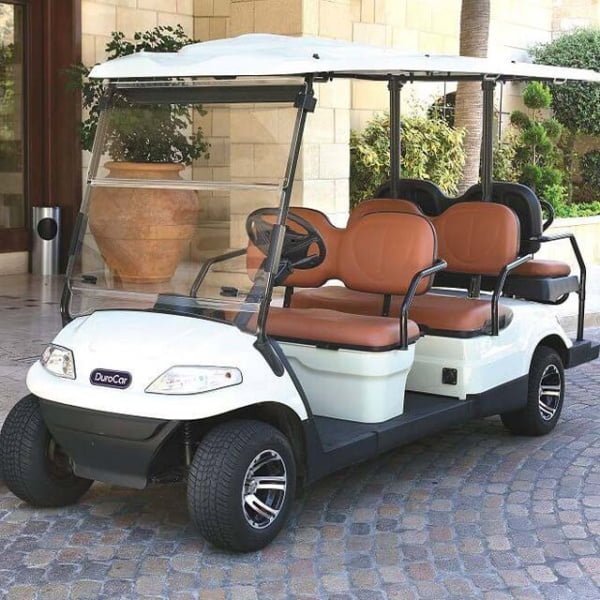

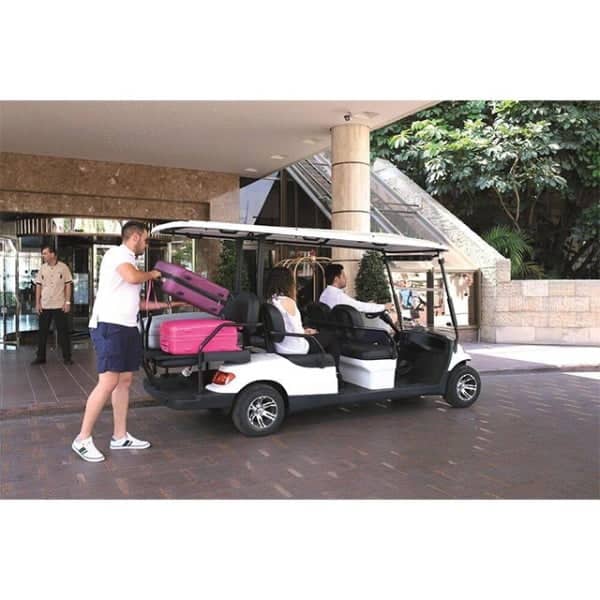

    Duro V6


    • Motor 48V 4kW AC Motor
    • ControllerToyota 48M-350A
    • Charger48V/25A
    • Battery 8V150Ah Gel Battery 150Ah│200Ah Lithium Battery - available upon request
    • Transaxle 16:1
    • Max speed 25 km/h (15.5 mph)
    • Slope climbing ability 20o (loaded)
    • Range 80-100 km (49.7-62.1 miles), loaded on flat road at speed of 20km/h (12.4 mph)
    • Braking distance <3m (9’ 10”)
    • Min turning radius4.1 m (13’ 5”
    Add to wishlist
