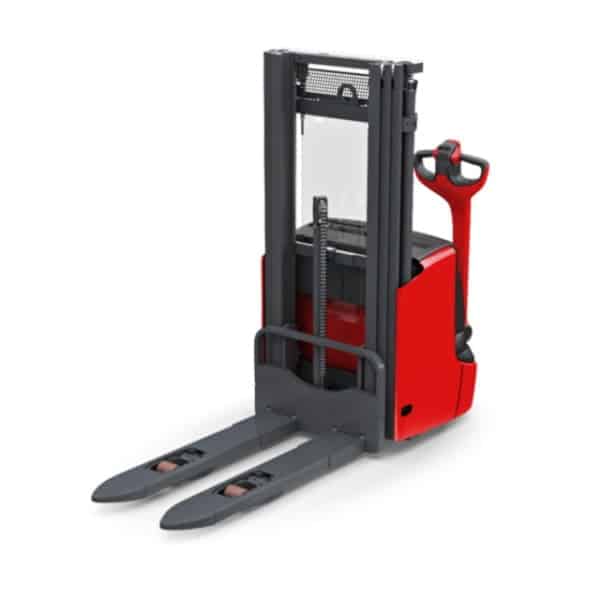

The L14 – L16 R pallet stackers can achieve lifting heights of up to 5,316 millimeters. Thanks to the optional initial lift and overhead guard, they are also suitable for safe loading and unloading of trucks via ramps or bridge plates. With a compact width of 820 mm, the truck is both maneuverable and comfortable. Due to a lateral and raised seating position, drivers have the best view of the loads and their surroundings. The vehicles are equipped with a powerful 3 kW motor and reach speeds of up to 10 km/h. In ECO mode, energy consumption is reduced by 12 percent.
Suitable for loads between 3500 and 5000 kilograms, the Linde E35 – E50 series of high-powered electric forklift trucks meet a wide range of specifications in order to optimally cater for customer requirements. These include, for example, compact models for areas where space is at a premium or tall trucks with a long wheelbase for tall, bulky loads. High handling performance is guaranteed, thanks to the two powerful three-phase motors of the Linde compact axle and dual pedal control, while features such as the overhead tilt cylinders, electronic traction control, and on-board high frequency charger bear testament to Linde's commitment to safety and cost-effectiveness.
The H25 – H35 EVO IC trucks ensure effective load handling with their hydrostatic direct drive and high-torque engines. Together with the Linde Load Control lift mast control system, this significantly increases operating performance. This trucks really prove themselves in intensive, continuous use, as many of their components require no servicing at all, hugely reducing downtime. The driver benefits from the fact that the mast and drive axle are decoupled from the driver's cab, so only minimal vibrations and shocks are felt.
|Stock Number||RF696||Usage Hours||2032 hours|
|Power Type||Diesel||Description||this one SOLD but others on way|
|Lift Type||Rough Terrain||Engine Make||Isuzu|
|Weight Capacity||1300 Kg||Engine Fuel Type||Diesel|
|Make||Ausa||Number of Pedals and Types||Single|
|Model||CE-11||Type of Controls||Direction Lever, Individual Hydraulic Lever|
|Model Year||1999||Cab Type||Standard|
|Mast Type||2 Stage (Duplex) Full Free Lift||Lights||Front Lights|
|Mast Height Open||2.66 metres||Battery Voltage||12 volts|
|Mast Height Closed||1.97 metres||Sideshift Type||None|
- Model:H 35D - 393 Series
- Type: DIESEL
- Transmission: HYDRAUSTATIC
- Engine: VW
- Accessories: SIDE SHIFT / FORK POTISIONER
- Valves: 3
- Capacity(kgs): 3500
- Lift Height(mm): STD 3050
- Collapsed Height(mm): 2264
- Tyres: S/E
- Fork Length(mm): 1200
