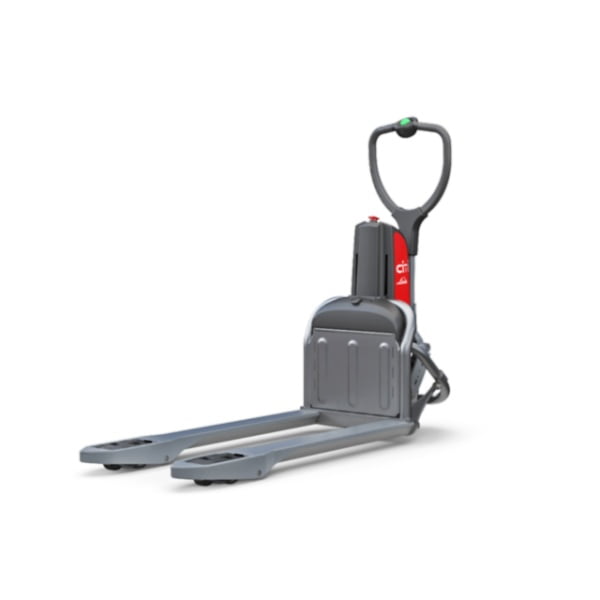

The pallet truck with order picking lift T16 L makes handling and occasional order picking easier. The operator lifts the pallet to a comfortable height and can then deposit or load the goods. In addition, the truck adapts this lift automatically with the optional AutoLift function. The load height for the operator thus remains the same even when goods are stacked on the pallet. A rugged steel construction protects the truck from damage during tough, continuous use. The low chassis covers the wheels and protects the operator’s feet. The powerful three-phase motor provides good acceleration, even with the maximum load of 1600 kg. At the maximum lift height, the truck has a residual load capacity of 800 kg.
|Model||Load capacity/Load||Lift||Travel speed, with/without load||Turning radius||Battery voltage/rated capacity (5h)|
|T16L||1.6 (t)||675 (mm)||6 / 6 km/h||1625 / 1685 (1550 / 1610) (mm)||24 / 250 (24 / 150) (V)/(Ah) o. kWh|
|T16L ION||1.6 (t)||675 (mm)||6 / 6 km/h||1625 / 1685 (1550 / 1610) (mm)||24 / 205 (V)/(Ah) o. kWh|
